DCDC4.5V-28V转15V、12V、5V、3.3V/2A同步降压芯片

dcdc4.5V-28V转15V2A电源芯片

dcdc4.5V-28V转12V2A稳压芯片

dcdc4.5V-28V转5V同步降压IC

dcdc4.5V-28V转3.3V降压恒压芯片

Features

• Wide 4.5V to 28V Operating Input Range

• 2A Continuous Output Current

• 500KHz Switching Frequency

• ECOT PSM Mode Control with Fast Transient

Response

• Built-in Over Current Limit

• Built-in Over Voltage Protection

• PFM Mode for High Efficiency in Light Load

• Internal Soft-Start

• 100mΩ/50mΩ Low RDS(ON) Internal Power

MOSFETs

• Output Adjustable from 0.8V

• No Schottky Diode Required

• Short Protection with Hiccup-Mode

• Integrated internal compensation

• Thermal Shutdown

• Available in SOT23-6 Package

• -40°C to +85°C Temperature Range

Applications

• Automotive Systems

• Network Terminal Equipment

• Security Monitoring Camera

• Printer Systems

• Industrial Power Systems

• Distributed Power Systems

General Description

The SL1588M is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply

range, with excellent load and line regulation. ECOT PSM control operation provides very fast transient response

and easy loop design as well as very tight output regulation.

The SL1588M requires a minimal number of readily available, external components and is available in a space saving

SOT23-6 package.

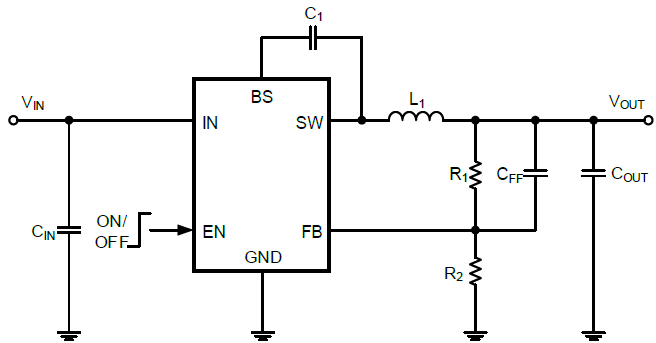

Typical Application Circuit
